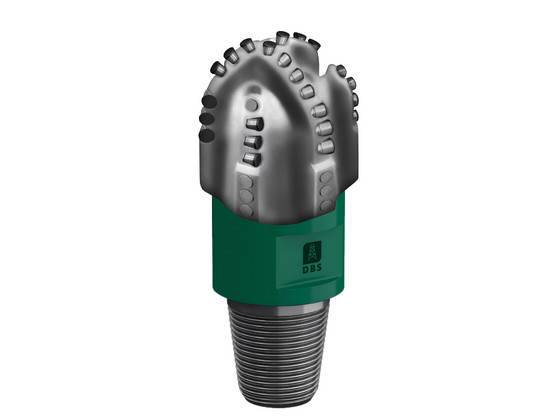

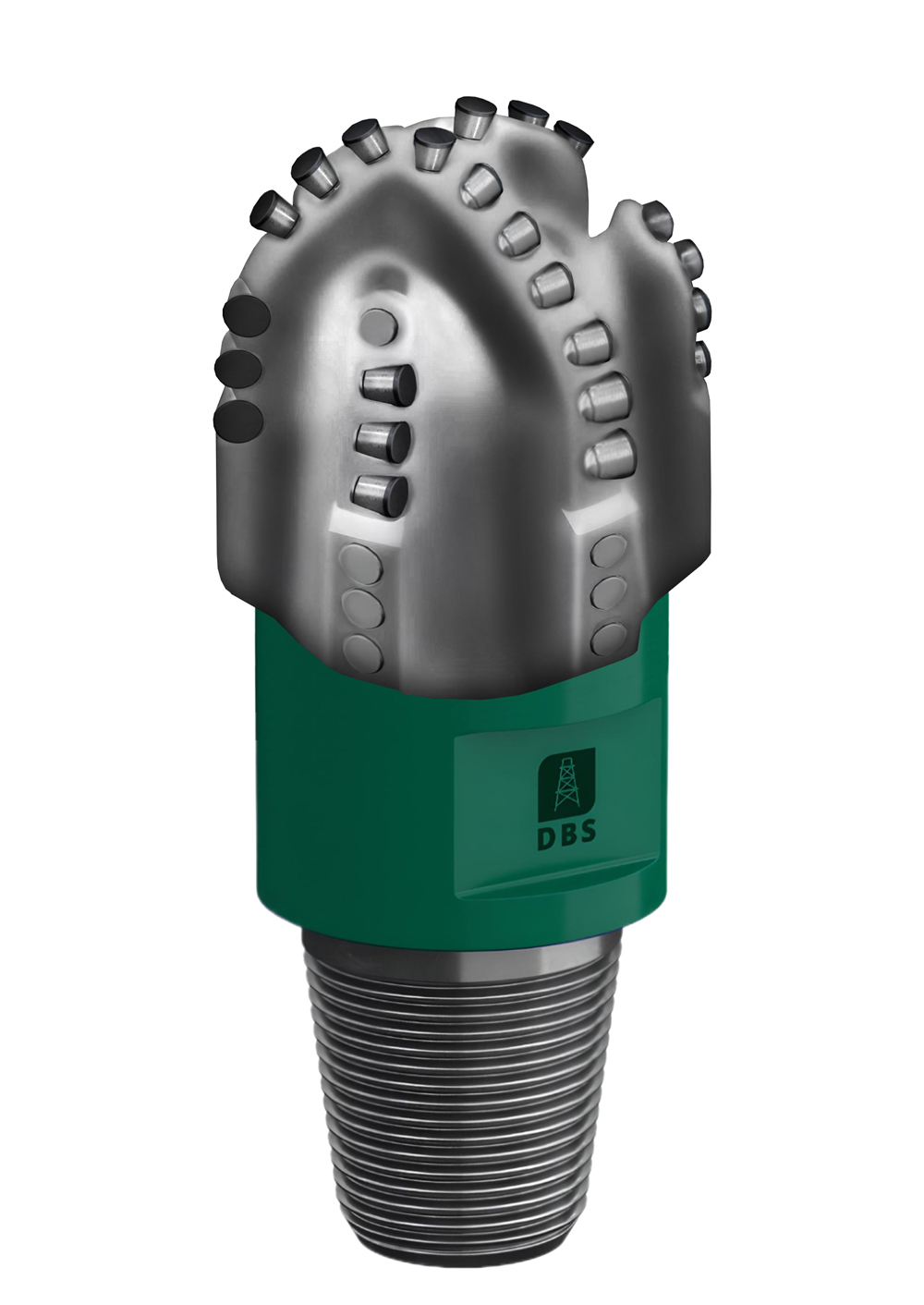

Bit DBS 613 SB04
Type: Reaming bit
The bit is designed for templating and calibrating the borehole while preventing spontaneous sidetracking.
TECHNICAL CHARACTERISTICS
| Diameter, mm | 155.6 |
| Number of blades, pcs. | 6 |
| Type of cutters PDC | premium |
| Distribution of cutters, mm: | 13 |
| Number of cutters, pcs: | 32 |
| IADC code | - |
| Bit body material, steel | 40ХН2МА |
| Quantity, pcs. flushing holes; | 3 |
| Bit height, mm | 341 |
| Weight, kg | 18 |
| Connecting thread (GOST R 50864-96) | З-88 |
| Mounting torque, kN*m | 9.5-12.2 |
RECOMMENDED PARAMETERS
| Maximum load on bit, t | 9 |
| Drilling fluid consumption, l/s | 12-15 |
| Rotation speed, rpm | up to 300 |
TECHNICAL FEATURES
- The long profile of the bit blades reduces the likelihood of cutting into the well walls. The use of PDC cutters on the cutting and calibrating parts increases the wear resistance of the bit
PRESERVATION INFORMATION
The connecting thread and thrust shoulders of the product are protected from corrosion by preservation grease in accordance with GOST 9.014-78.
WARRANTY OBLIGATIONS
The manufacturer guarantees that the bit complies with the requirements of TU 25.73.60-001-32628987-2018, provided that the consumer complies with the conditions of transportation, storage and operation.
