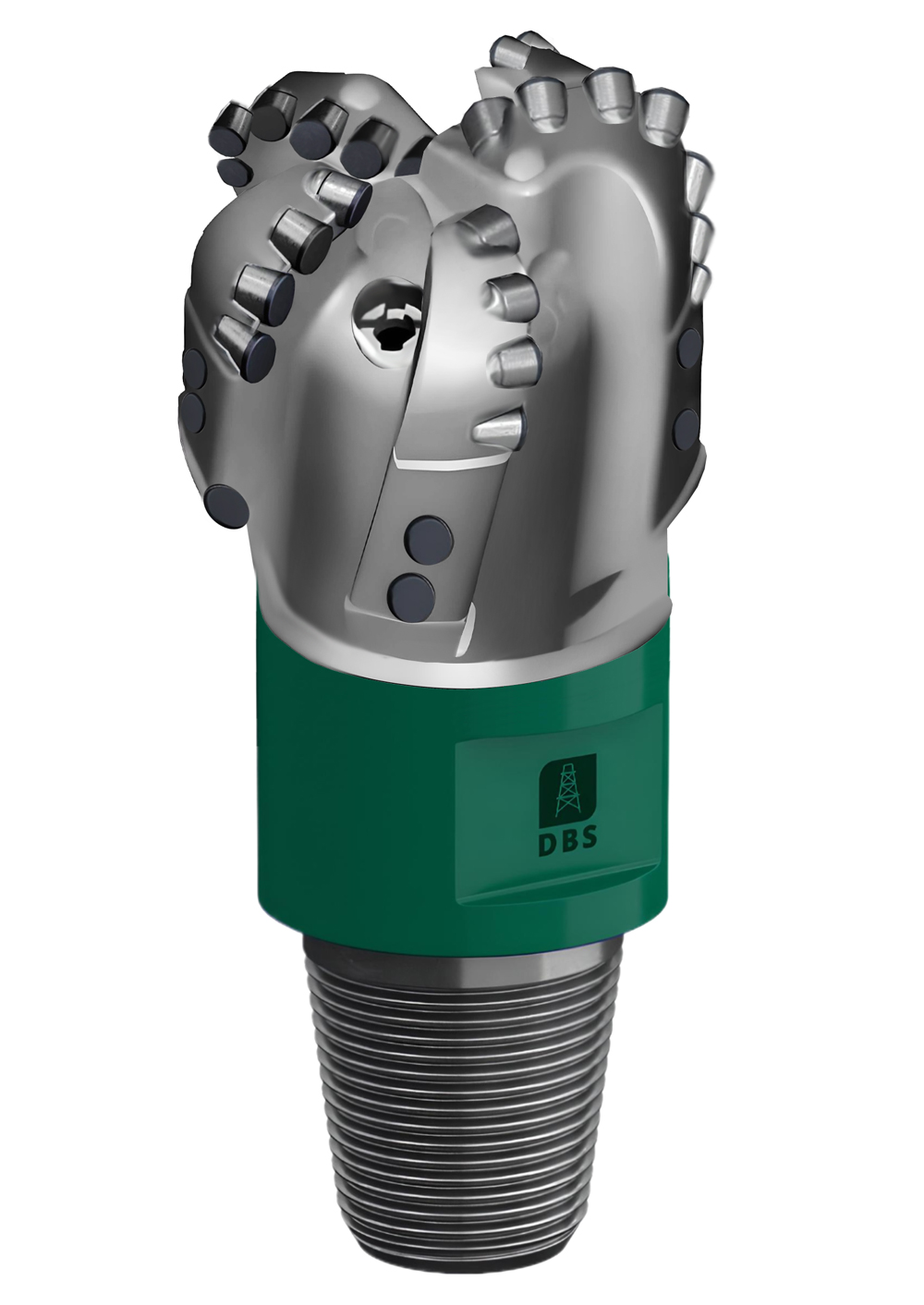

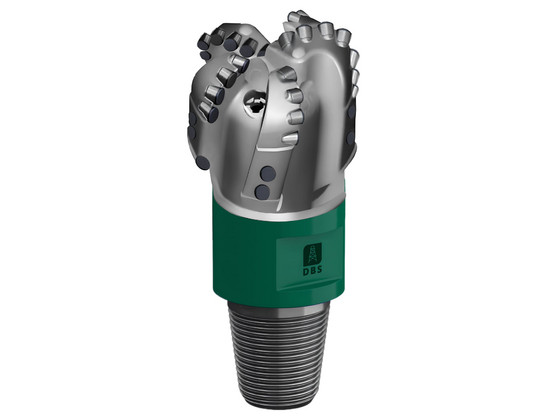

Bit DBS513 S117-2
Type: Single row bit
The bit is designed for continuous face drilling with the use of rotary-steerable systems and downhole motors in the construction of horizontal and directional oil wells in soft and medium-abrasive rocks
TECHNICAL CHARACTERISTICS
| Diameter, mm | 155.6 |
| Number of blades, pcs. | 5 |
| Type of cutters PDC | premium |
| Distribution of cutters, mm: | 13 |
| - main working part, pcs. | 24 |
| - calibrating part, pcs. | 10 |
| - reverse cutting cutters, pcs. | - |
| Total: | 39 |
| IADC code | S333 |
| Bit body material | Steel 40ХН2МА |
| Number of replaceable attachments, pcs. | |
| 5 | |
| Height of bit without thread, mm | 215.0 |
| Weight, kg | 18.8 |
| Connecting thread (GOST R 50864-96) | З-88Н |
| Make-up torque, kN*m | 9.5-12.2 |
RECOMMENDED PARAMETERS
| Maximum load on bit, t | 12 |
| Rotation speed, rpm | up to 300 |
| Flow rate of flushing fluid, l/s | 10-20 |
TECHNICAL FEATURES
- Premium cutters. Resistant to abrasive wear and impact loads, the cutters allow to increase the drilling interval and mechanical rate of penetration.
- Reinforcement of the calibrating part. A special coating of the bit caliber prevents its wear and loss of diameter.
- The stepped configuration calibrating platform ensures stability without limiting the lateral aggressiveness of the bit cutting.
PRESERVATION INFORMATION
The connecting thread and thrust shoulders of the product are protected from corrosion by preservative grease in accordance with GOST 9.014-78.
WARRANTY OBLIGATIONS
The manufacturer guarantees that the bit complies with the requirements of TU 25.73.60-001-32628987-2018, provided that the consumer complies with the conditions of transportation, storage and exploitation.
