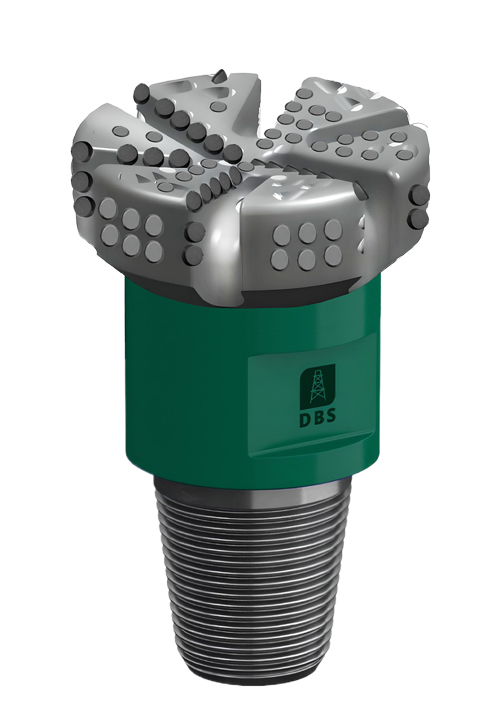

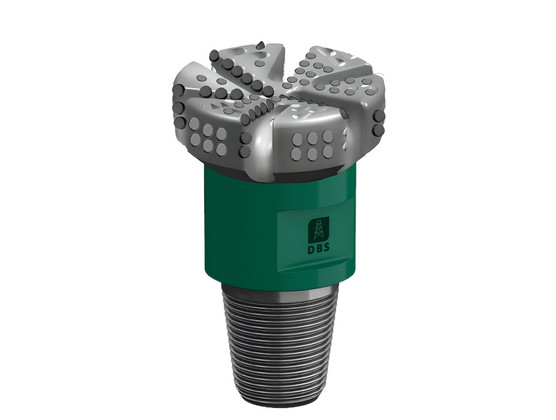

Bit DBS613 ZB06
Type: Sidetracking bit
The bit is designed to provide cutting in the uncased section of the well in oil and gas wells.
TECHNICAL CHARACTERISTICS
| Diameter, mm | 220.7 |
| Number of blades, pcs. | 6 |
| Type of cutters PDC | premium |
| Distribution of cutters, mm: | 13 |
| - number of cutters, pcs. | 59 |
| IADC code | S432 |
| Bit body material | 40ХН2МА steel |
| Number of fixed attachments, pcs. | 6 |
| Bit height, mm | 278 |
| Weight, kg | 41 |
| Connecting thread (GOST R 50864-96) | З-117Н |
| Make-up torque, kN*m | 16.3-21.7 |
RECOMMENDED PARAMETERS
| Maximum load on bit, t | 15 |
| Rotation speed, rpm | up to 300 |
| Drilling fluid consumption, l/s | 32-40 |
TECHNICAL FEATURES
- Premium class cutters. Cutters resistant to abrasive wear and impact loads allow to increase the drilling interval and mechanical rate of penetration.
- Reinforcement of the calibrating part. A special coating of the bit caliber prevents its wear and loss of diameter.
PRESERVATION INFORMATION
The connecting thread and thrust shoulders of the product are protected from corrosion by preservative grease in accordance with GOST 9.014-78.
WARRANTY OBLIGATIONS
The manufacturer guarantees that the bit complies with the requirements of TU 25.73.60-001-32628987-2018 provided that the consumer complies with the conditions of transportation, storage and operation.
